Fastec HS Series
High-Speed Digital Cameras



Fastec Imaging's HS Series high-speed camera is designed with the serious researcher in mind. Image access as well as storage and retrieval have been rethought in order to maximize utility and reduce cycle times.



Standard HS Camera Features

  • Camera Controller eliminates the need for a dedicated PC
  • May be run locally or via any networked PC or Mac
  • Advanced application software with multi-camera controls and batch downloads
  • Synchronization of multiple cameras, including TS, IL, and HiSpec
  • Synchronization with strobe lights or other devices via TTL or LVTTL signals
  • Multiple  high-speed mass storage interfaces
  • Proprietary high-speed fiber optic interface using COTS cabling
  • Flexible triggering: Hardware, Software, Timed, or Image Trigger
  • Software control for MFT (micro four thirds) lenses

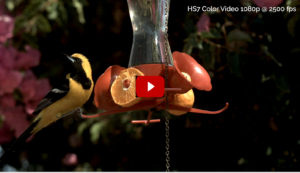

Video taken with HS7 Color Camera

Optional Camera Features

  • Up to 32GB internal image memory
  • Internal SSD up to 2TB
  • SSD streaming modes for extended recordings

Fastec HS Series High-Speed Cameras

  • Advanced CMOS image sensors from 1.3 to 5MP
  • HS7: Full HD (1080p) @ 2500 frames per second (10 bits)
  • HS5: Quad HD (1440p) @ 350 frames per second (12 bits)
  • Configurable I/O ports for data capture, triggering, and sync
  • Excellent depth of field and high system magnification
  • Binning and sub-sampling on some models
  • Wide ISO range



Download HS Series Datasheets:

HS5    HS7

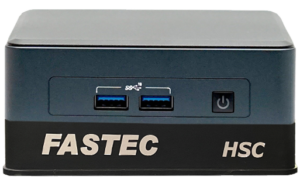

Fastec HS Camera Controller*

  • Compatible with all HS, TS, and IL cameras
  • Pre-loaded with control & productivity software
  • Intel 11th Gen i5 processor
  • 16GB system memory, 512GB SATA SSD
  • 2x HDMI 2.0b & 2x DP 1.4a
  • Fiber optic camera connection (32G)
  • 2x Thunderbolt 4 (40G)
  • 3x USB 3.2 (10G); 2x USB4 (40G)
  • 2.5 Gigabit Ethernet
  • WiFi 6 & Bluetooth 5.1

*Specifications are subject to change.







Features Our Customers Love

  • Autonomous systems available
  • Setup and control via multiple interfaces
  • Exceptional resolution and frame rate options
  • Advanced synchronization and control of multi-camera systems
  • Unique imaging capabilities for greater system magnification & depth of field
  • Long record times - onboard mass storage up to 1TB
  • Flexible workflows for unique applications
